      Horizontal Directional Drilling

      Product advantage

      - Slewing System:
      There are V90N.DT/DP electric proportional displacement control, and V30G load-sensing/electric proportional displacement control is optional; the slewing motor HM6V has an optimized rotation balance design, high-speed performance and smooth start characteristics;
      - Feeding System:
      Pump HP5V+control valve HVSP/HVSM + fixed displacement piston motor HM7X85/variable piston motor HM6V, provide system solutions.
      - Hydraulic control valves for industrial use:
      Reliable in quality, superior in performance and with guaranteed efficiency. The valves can be customized according to customer’s requirements to meet the requirements of ordinary and special working conditions.

      Accessory component

      Horizontal Directional DrillingNameModel

      Pressure(MPa)

      Rate of Flow (L/min)

      Download

      Manually operated reversing valves

      4WMM16G-L7X31.5240


      Stacked governor valves

      Z2FRM6CB2-L2X32QR31.532

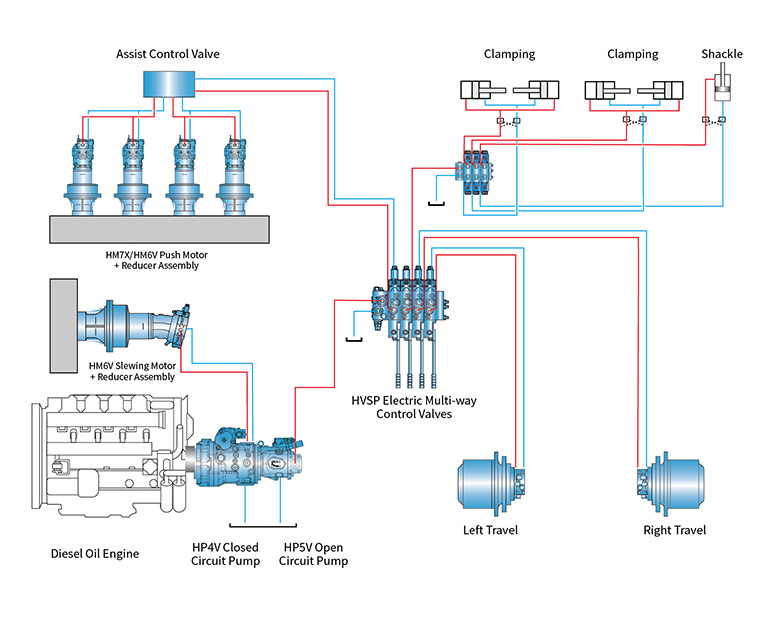

      System solution

      5 水平定向鉆.jpg
